What is a soft starter?

Publish Time: 2025-03-19 11:50 Author: Site Editor Visit: 91

A soft starter is an electronic device used to control the starting and stopping of a motor. It reduces the starting current by adjusting the voltage to achieve smooth starting and stopping. It has many advantages and is widely used in motor control in various industries.Here is a detailed introduction:

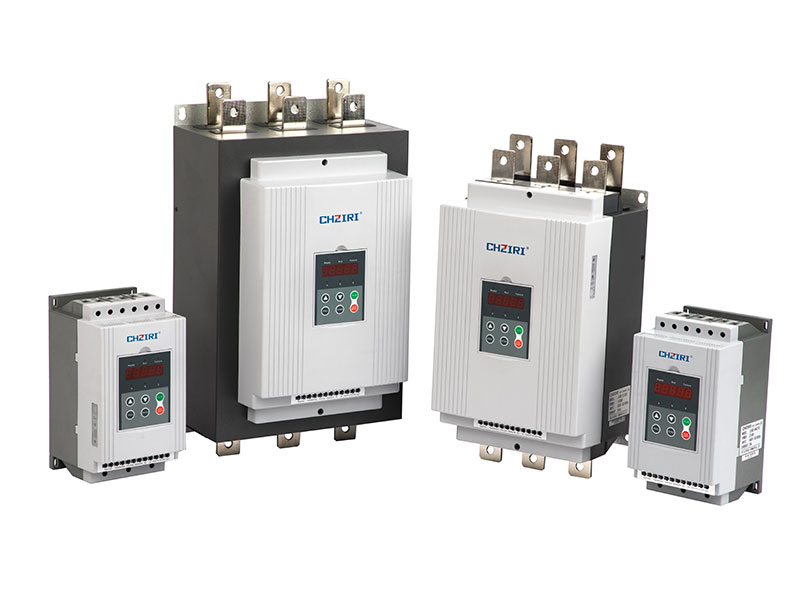

ZJR2 Series Soft Starter

Understanding the Basics

A soft starter is an electronic device designed to control the start - up and shutdown of an electric motor. Its primary function is to gradually increase the voltage supplied to the motor during start - up, rather than applying the full - rated voltage immediately as in a traditional direct - on - line (DOL) starter. This is achieved through the use of power - electronic components, most commonly thyristors.

Thyristors are semiconductor devices that can control the flow of electric current. In a soft starter, a set of thyristors is arranged in a configuration that allows them to regulate the voltage applied to the motor windings. By adjusting the firing angle of the thyristors, the soft starter can precisely control the amount of voltage and, consequently, the current that the motor draws during start - up.

The Working Mechanism

When an electric motor is started directly, it experiences a large inrush current. This inrush current can be several times higher than the motor's rated current. The reason for this high current is that the motor's windings, which are essentially inductive coils, present a low impedance to the applied voltage at start - up. As the motor begins to rotate, the back - EMF (electromotive force) is generated, which opposes the applied voltage and gradually reduces the current drawn by the motor.

A soft starter mitigates this inrush current problem. At the moment of start - up, the soft starter applies a reduced voltage to the motor. This lower voltage results in a proportionally lower current flowing through the motor windings. As the motor starts to rotate, the soft starter gradually increases the voltage in a controlled manner. The rate at which the voltage is increased, known as the ramp - up time, can be adjusted according to the specific requirements of the motor and the application.

During the shutdown process, the soft starter operates in reverse. It gradually reduces the voltage applied to the motor, allowing the motor to slow down and come to a stop in a smooth and controlled manner. This is in contrast to a sudden shutdown, which can cause mechanical stress on the motor and the connected machinery.

Advantages of Soft Starters

Reduced Inrush Current: One of the most significant advantages of soft starters is their ability to limit the inrush current. By reducing the starting current to a fraction of what it would be in a DOL start, soft starters help prevent voltage dips in the power supply system. These voltage dips can affect other equipment connected to the same network, causing malfunctions or even damage. In industrial settings where multiple motors may be operating simultaneously, the use of soft starters can ensure a stable power supply for all equipment.

Smooth Start - up and Shutdown: Soft starters provide a gentle start - up and shutdown for the motor. This reduces mechanical stress on the motor's bearings, shafts, and other components. In applications where the motor is connected to delicate or precision - engineered machinery, such as in the food and beverage industry or in medical equipment, a smooth start - up and shutdown are essential to prevent damage and ensure accurate operation.

Extended Motor Life: The reduced mechanical stress and lower inrush current achieved through the use of soft starters contribute to an extended lifespan of the motor. Motors subjected to frequent DOL starts experience more wear and tear, leading to increased maintenance requirements and a shorter overall lifespan. By using soft starters, the need for premature motor replacements can be significantly reduced, resulting in cost savings for businesses.

Energy Efficiency: Soft starters can also contribute to energy savings. By optimizing the start - up process, they ensure that the motor reaches its operating speed with minimal energy wastage. Additionally, some soft starters are equipped with features such as energy - saving modes, which adjust the motor's voltage and speed based on the load requirements. This allows the motor to operate at the most efficient level, reducing overall energy consumption.

Protection Features: Modern soft starters are equipped with a variety of protection features. These include over - current protection, which detects and shuts down the motor in the event of an excessive current flow, over - voltage protection to safeguard against high - voltage surges, and thermal protection to prevent the motor from overheating. These protection features enhance the reliability and safety of the motor operation, reducing the risk of equipment failure and potential downtime.

Applications of Soft Starters

Soft starters find applications in a wide range of industries and settings:

Industrial Manufacturing: In manufacturing plants, soft starters are used to start and control motors in various types of machinery, such as conveyors, pumps, compressors, and machine tools. The ability to control the start - up and shutdown of these motors precisely is crucial for maintaining production efficiency and product quality.

HVAC Systems: In heating, ventilation, and air - conditioning (HVAC) systems, soft starters are used to control the motors of fans, pumps, and compressors. The smooth start - up and shutdown provided by soft starters help to reduce noise and vibration in HVAC equipment, improve energy efficiency, and extend the lifespan of the motors.

Water and Wastewater Treatment: Soft starters play an important role in water and wastewater treatment plants. They are used to start and stop pumps that are responsible for moving water, sludge, and other fluids. The ability to control the inrush current and provide a smooth start - up is essential in these applications to prevent damage to the pumps and ensure reliable operation of the treatment processes.

Commercial Buildings: In commercial buildings, soft starters are used in elevators, escalators, and other motor - driven equipment. The smooth operation provided by soft starters enhances the safety and comfort of building occupants, while also reducing maintenance costs.

Renewable Energy Systems: Soft starters are also used in renewable energy systems, such as wind turbines and solar power plants. In wind turbines, soft starters are used to start the generator motors, while in solar power plants, they are used to control the motors of pumps and other equipment. The ability to control the start - up and shutdown of these motors is crucial for the efficient operation of renewable energy systems.

In conclusion, soft starters are an essential component in modern electrical engineering and industrial automation. Their ability to control the start - up and shutdown of electric motors, reduce inrush current, provide smooth operation, and offer protection features makes them invaluable in a wide range of applications. As technology continues to advance, soft starters are likely to become even more sophisticated, further enhancing their performance and versatility.
