CHZIRI variable frequency Drive inverters for the control of the speed motors for winding coil machine.

As you know. CHZIRI AC motor speed controller is always three phase out. It means most inverter can't connect to mono phase motors.

Accroding to this special inquiry,CHZIRI Electrical design ZVF330-D series (AC single phase output 220V± 20%,0.4kw-2.2kw).

lt's oK for CHZIRI Single phase output ZVF330-D1R5S2SD to to run and reduce the rpm of a single phase AC motor.

Here is instruction to lead you how to works.

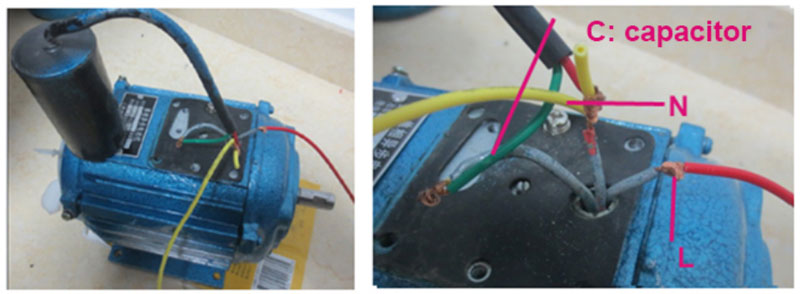

A.Remove the Start Capacitor

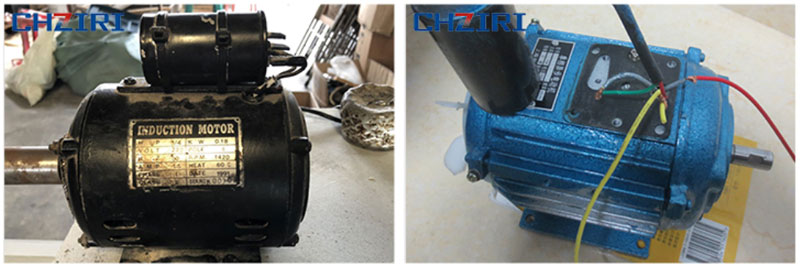

ORIGINAL WIRING OF MOTOR (WITH CAPAGITOR)

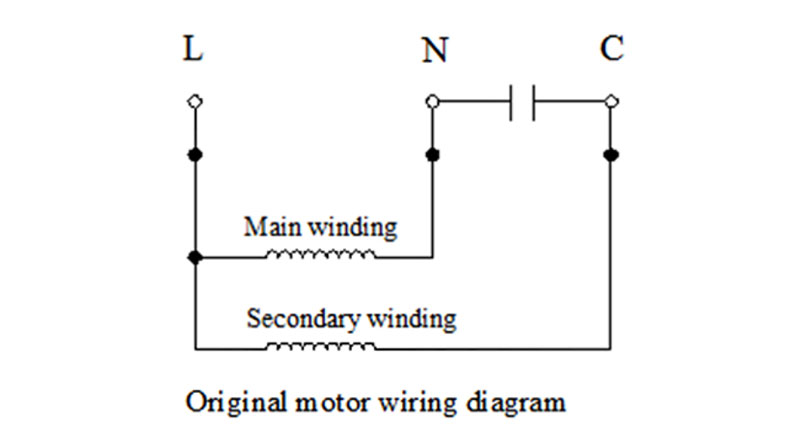

ORIGINAL WIRING DIAGRAM OF MOTOR (WITH CAPACITOR)

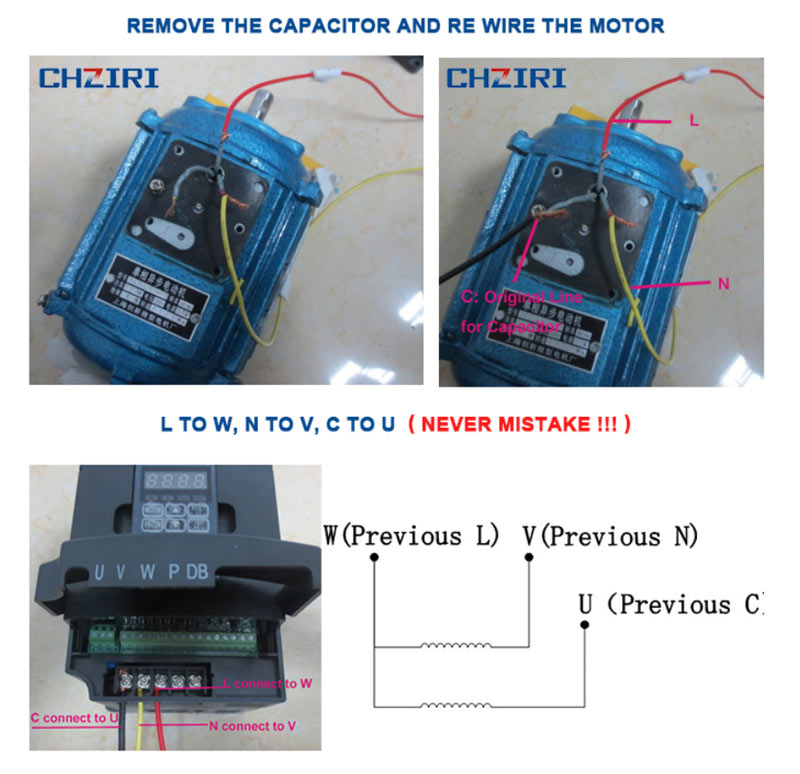

B. Re-Wire and Connect the Motor to VFD

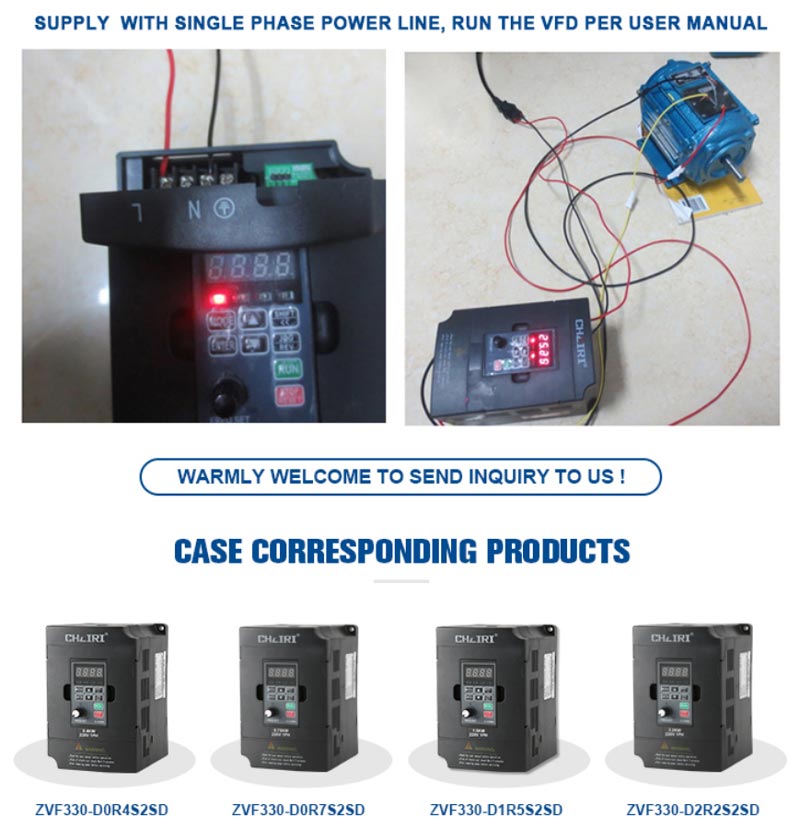

C.Run the VFD per User Manual
